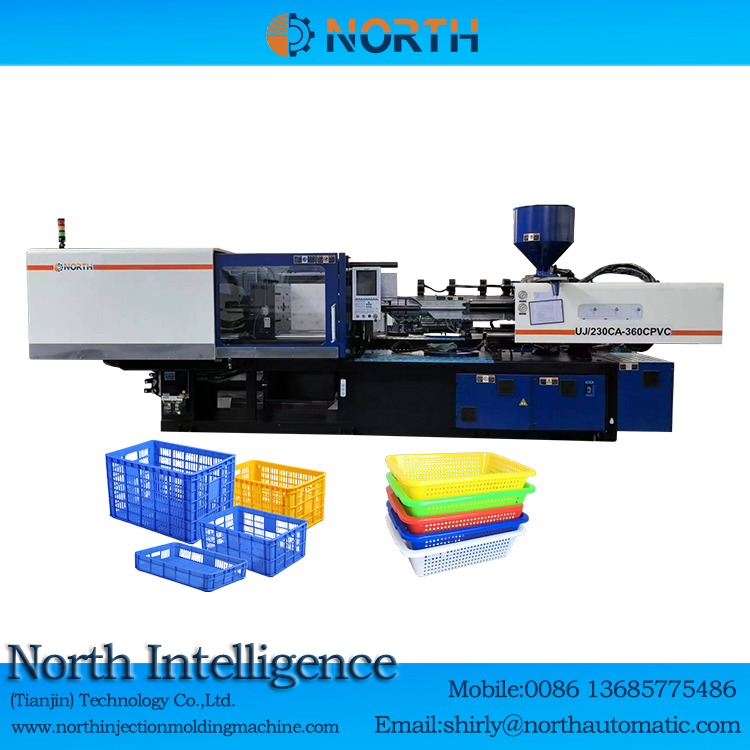

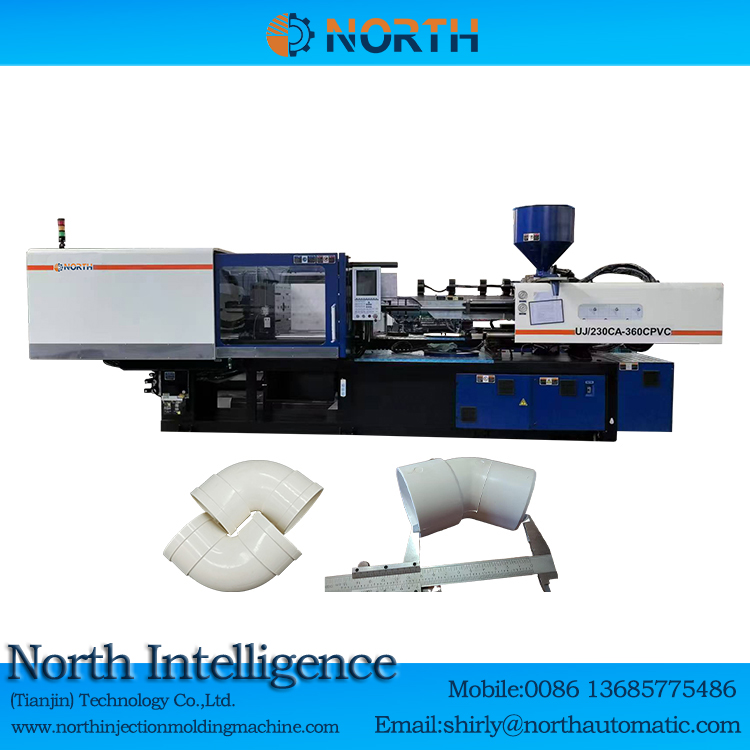

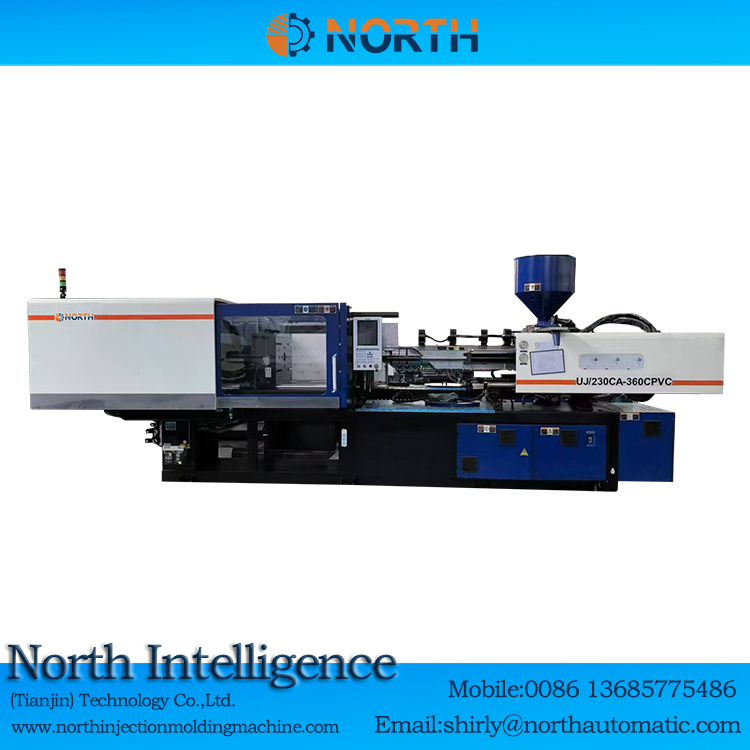

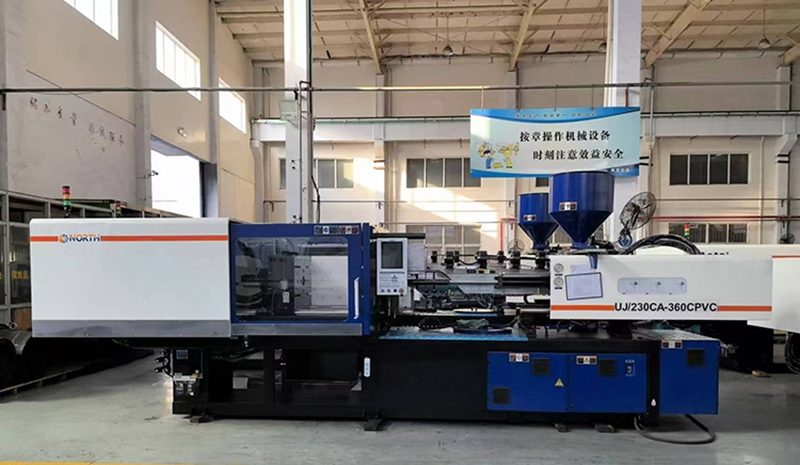

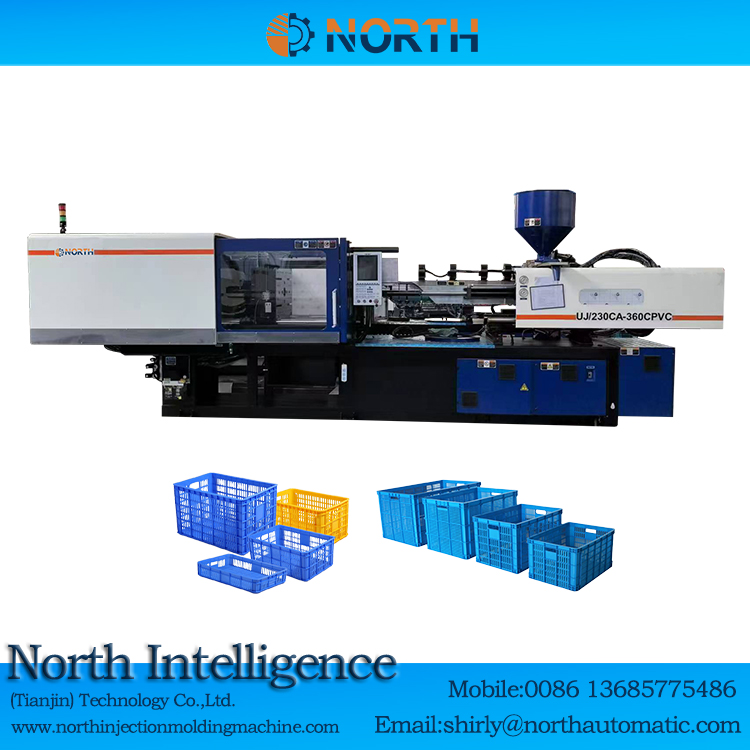

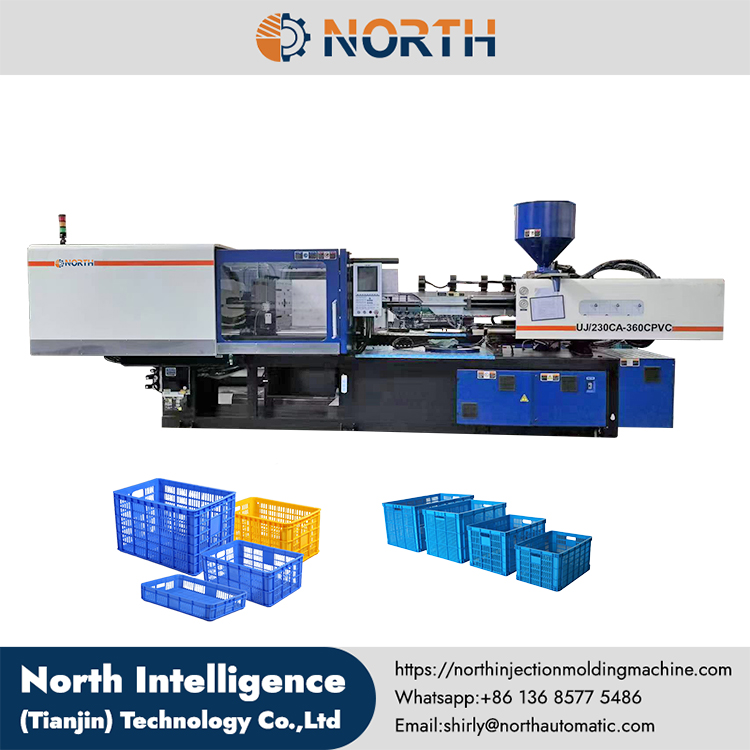

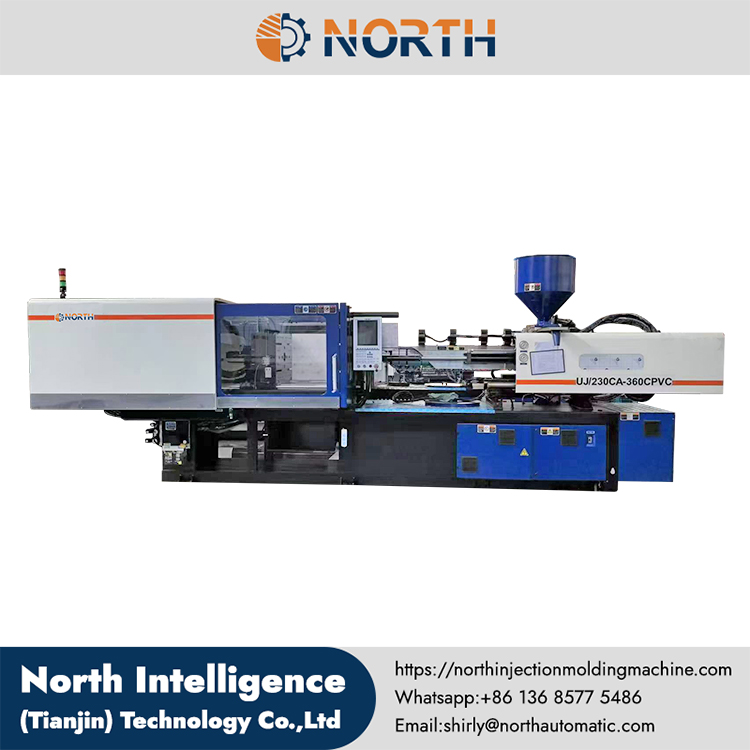

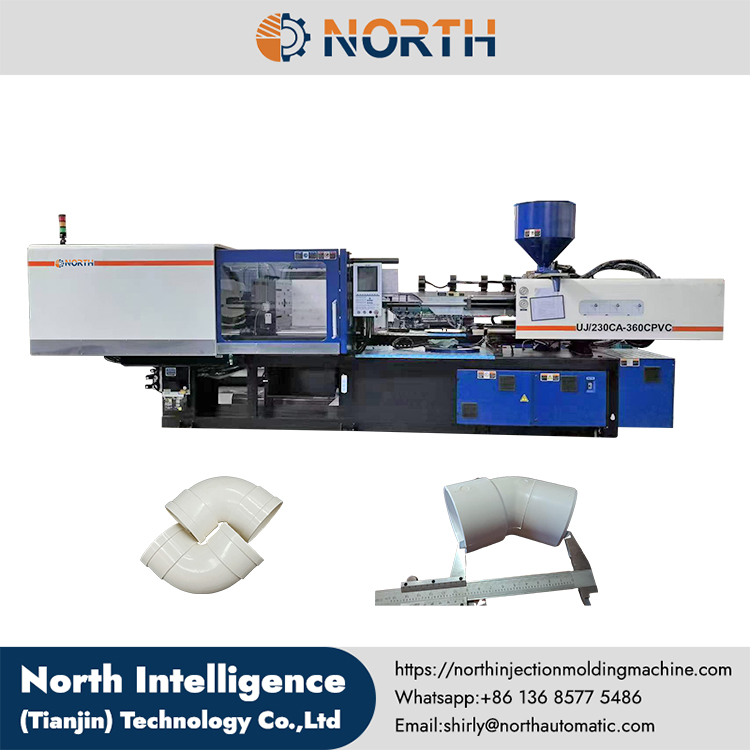

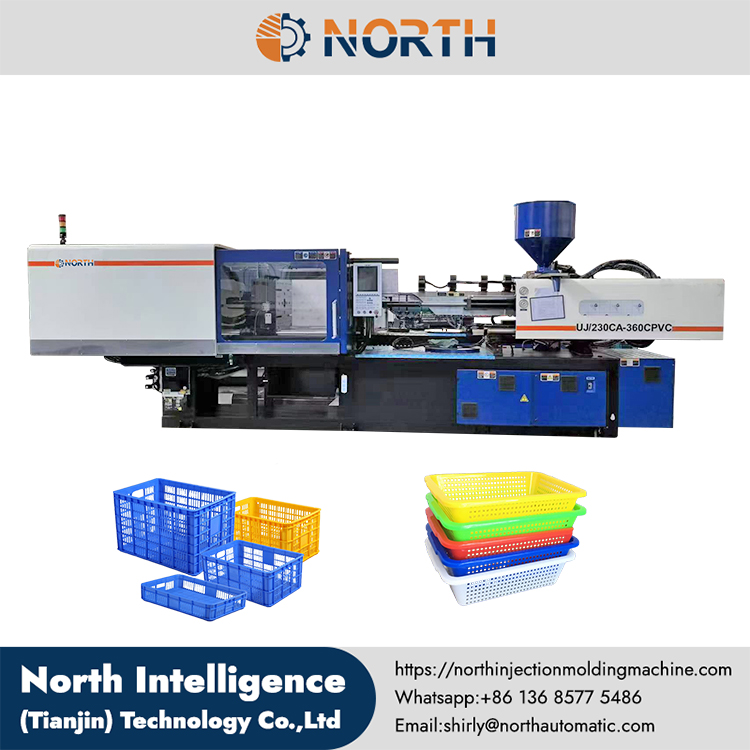

INTERNATIONAL CLASS NO. 230/828
TYPE/SPECIFICATION U/230V
Screw type A B C
Injection Unit
Screw diameter mm 45 50 55
Screw L/D ratio L/D 24.5 22 20.2
Shot volume (theoretical) CM³ 397 490 593
Injection weight (PVC) g 506 624 755
Injection rate g/S 190 235 284
Injection pressure Mpa 207 168 139
Screw speed rpm 110
Clamping Unit
Clamping force KN 2300
Open stroke mm 475
Space between tie-bars(W"H) mm 520×520
Max.mould height mm 560
Min.mould height mm 200
Ejector stroke mm 150
Ejector force KN 70
Others
Pump max.pressure Mpa 16
Pump motor power(servo) KW 18.5(23)
Heating power KW 14.8
Numbers of heating area Segment 3+1
Machine dimension (L*W"H) M 5.75×1.58×2.28
Oiltank cubage L 230
Machine weight TON 7
The seller will dispatch an engineer to the buyer's side if required;
The buyer should pay all the expenses including visa application fees, the round-trip ticket, food and accomodation etc;
And the buyer should also pay $200/day for engineer during machine installation and testing period.
Frequently Asked Questions (FAQ)
1.Q: Are you a factory or a trading company?
A: Industry and trade integration, we supply with high-quality factory prices, welcome to visit!
2.Q: How is the quality control of your factory?
A: "Quality is our top priority. We always attach great importance to quality control from beginning to end and have a dedicated quality control department.
3.Q: What is your normal delivery time?
A: Our company's general delivery time is 25-55 days after receiving the order. We also have independent locations and engineers to handle more urgent orders, which can be shipped within 4 weeks.
4.Q: About the price?
A: We will calculate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price discounts.
5.Q: How is your machine different from other merchants' machines?
A: We have optimized the overall design of each component of the machine to make the machine run more smoothly and have a longer service life. Fine parts are all marked exclusively, which is more convenient for customers to replace parts and use.
6.Q: Where is your factory located? How can I visit us?
A: Our factory is located at Huadingxinqu No.1,Xiqing Dist 300392,Tianjin,China.Welcome domestic and foreign customers!
You are welcome to send samples, and we will customize high-quality machines for you! Best wishes to you!

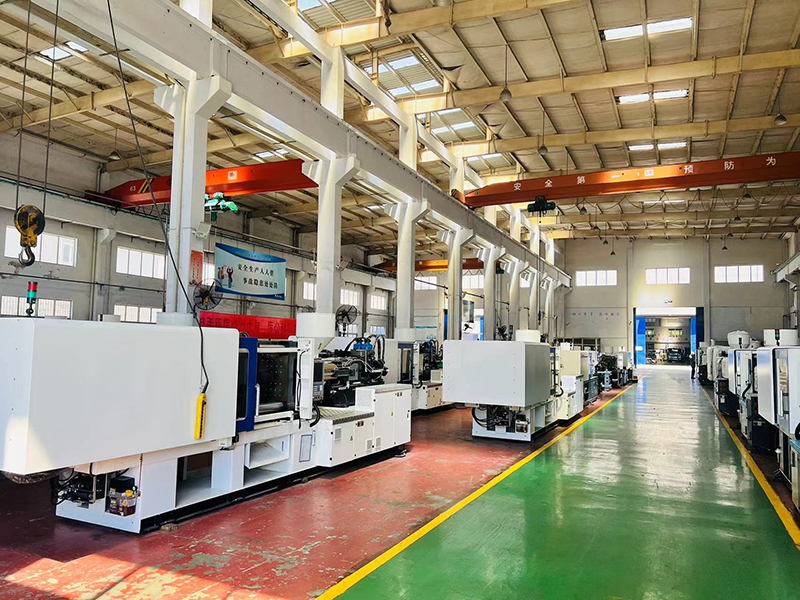

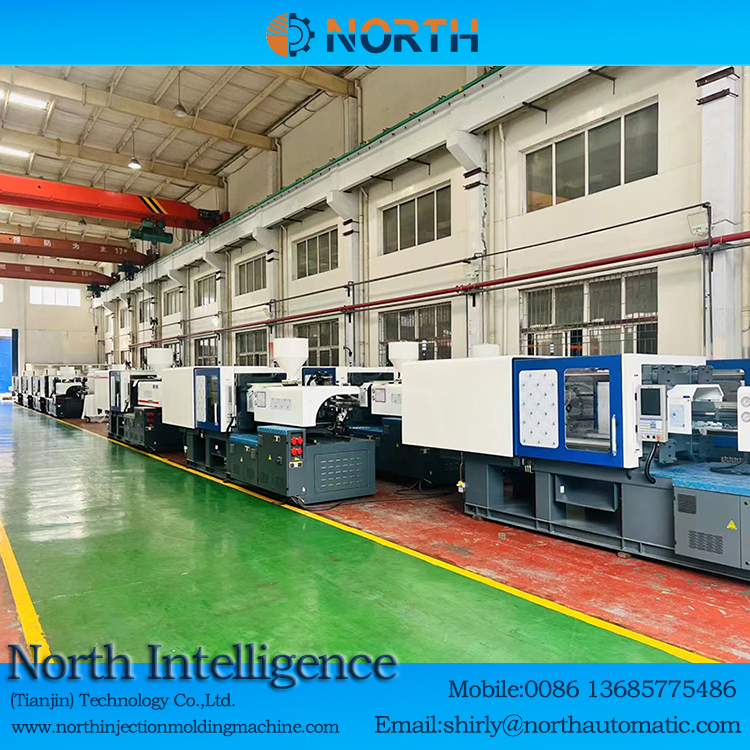

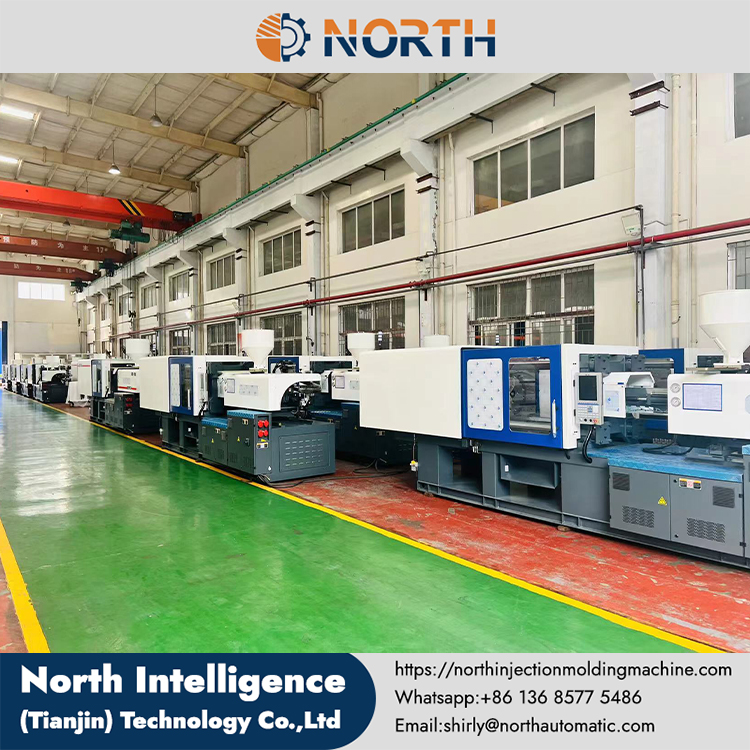

North Intelligence focuses on providing various types of high-end injection molding machines, and has accumulated more than 15 years of experience in the research and development and manufacturing of injection molding machines. It provides advanced and precise injection molding equipment for related industries, and provides one-stop injection molding solutions and one-stop turnkey engineering services for factory construction.
