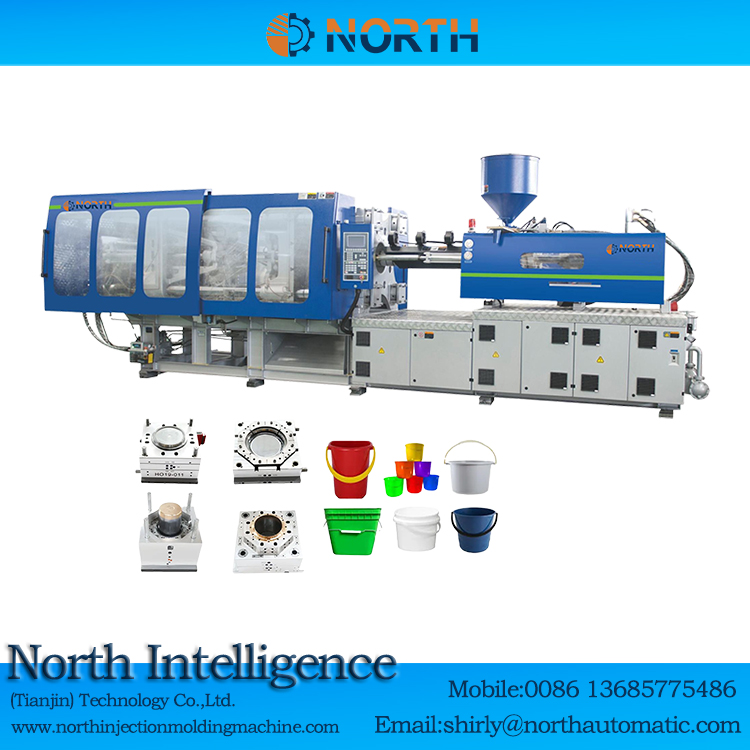

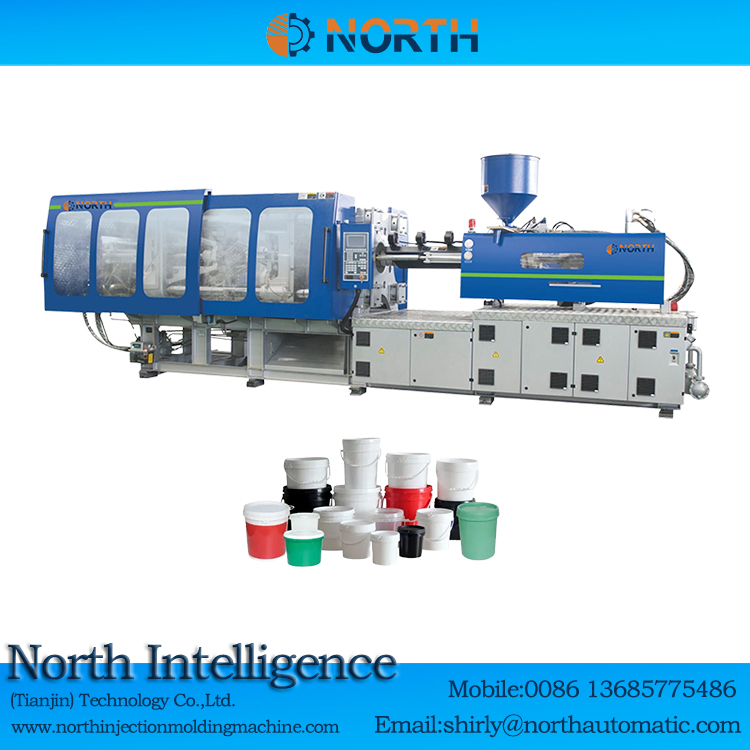

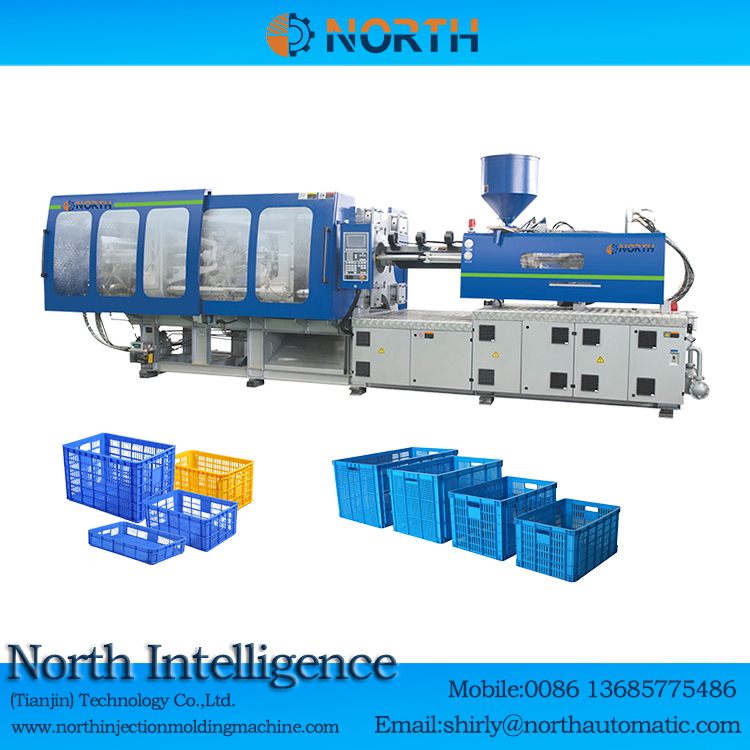

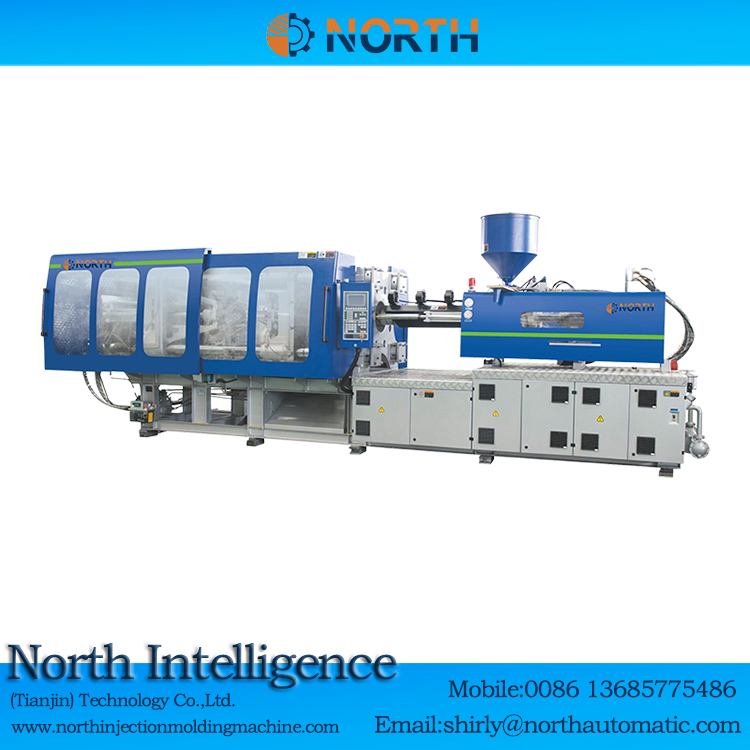

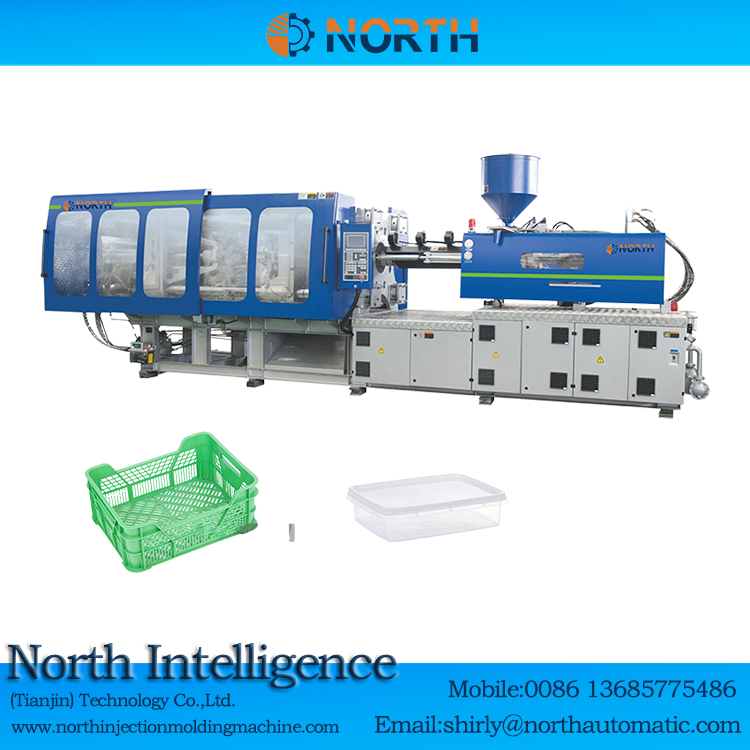

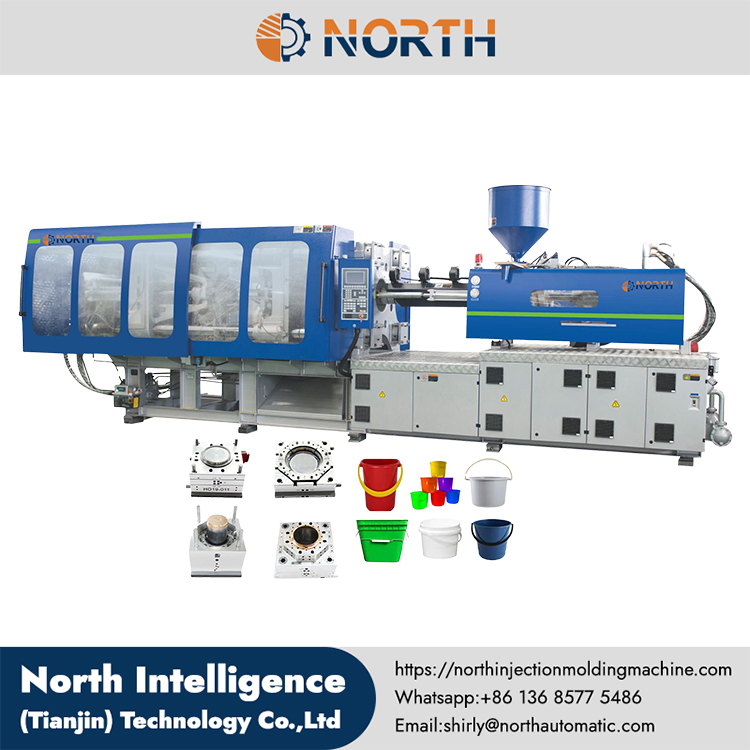

INTERNATIONAL CLASS NO. 180/638
TYPE/SPECIFICATION U/180V
Screw type A B C
Injection Unit
Screw diameter mm 56 60 65
Screw L/D ratio L/D 24 22 20.3
Shot volume (theoretical) CM³ 676 805 945
Injection weight (PVC) g 861 1026 1024
Injection rate g/S 314 372 437
Injection pressure Mpa 202 170 145
Screw speed rpm 130
Clamping Unit
Clamping force KN 3000
Open stroke mm 610
Space between tie-bars(W"H) mm 650×650
Max.mould height mm 700
Min.mould height mm 200
Ejector stroke mm 180
Ejector force KN 70
Others
Pump max.pressure Mpa 16
Pump motor power(servo) KW 30(33)
Heating power KW 18.3
Numbers of heating area Segment 3+1
Machine dimension (L*W"H) M 6.55×1.72×2.45
Oiltank cubage L 360
Machine weight TON 10
The seller will dispatch an engineer to the buyer's side if required;
The buyer should pay all the expenses including visa application fees, the round-trip ticket, food and accomodation etc;
And the buyer should also pay $200/day for engineer during machine installation and testing period.
Frequently Asked Questions (FAQ)
1.Q: Are you a factory or a trading company?
A: Industry and trade integration, we supply with high-quality factory prices, welcome to visit!
2.Q: How is the quality control of your factory?
A: "Quality is our top priority. We always attach great importance to quality control from beginning to end and have a dedicated quality control department.
3.Q: What is your normal delivery time?
A: Our company's general delivery time is 25-55 days after receiving the order. We also have independent locations and engineers to handle more urgent orders, which can be shipped within 4 weeks.
4.Q: About the price?
A: We will calculate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price discounts.
5.Q: How is your machine different from other merchants' machines?
A: We have optimized the overall design of each component of the machine to make the machine run more smoothly and have a longer service life. Fine parts are all marked exclusively, which is more convenient for customers to replace parts and use.
6.Q: Where is your factory located? How can I visit us?
A: Our factory is located at Huadingxinqu No.1,Xiqing Dist 300392,Tianjin,China.Welcome domestic and foreign customers!
You are welcome to send samples, and we will customize high-quality machines for you! Best wishes to you!
North Intelligence focuses on providing various types of high-end injection molding machines, and has accumulated more than 15 years of experience in the research and development and manufacturing of injection molding machines. It provides advanced and precise injection molding equipment for related industries, and provides one-stop injection molding solutions and one-stop turnkey engineering services for factory construction.
