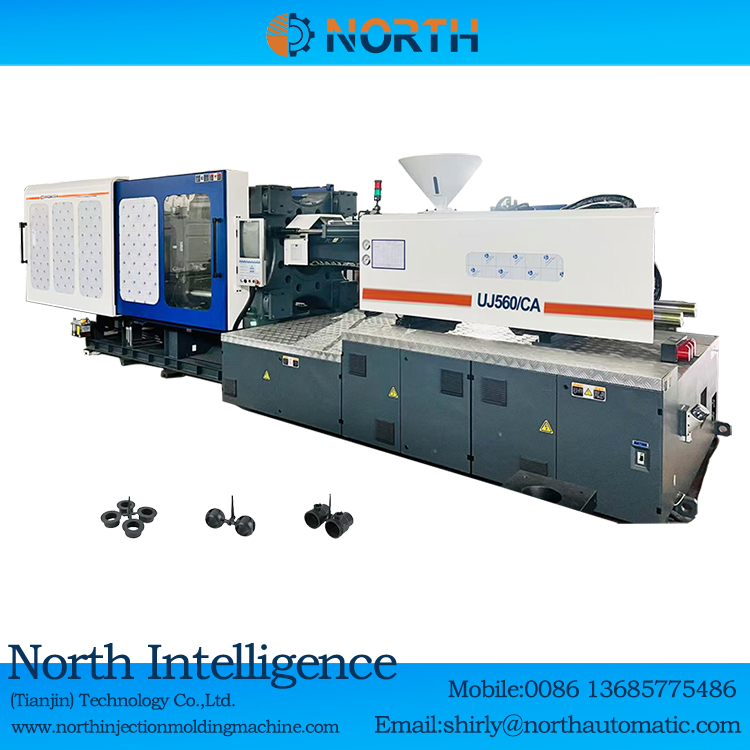

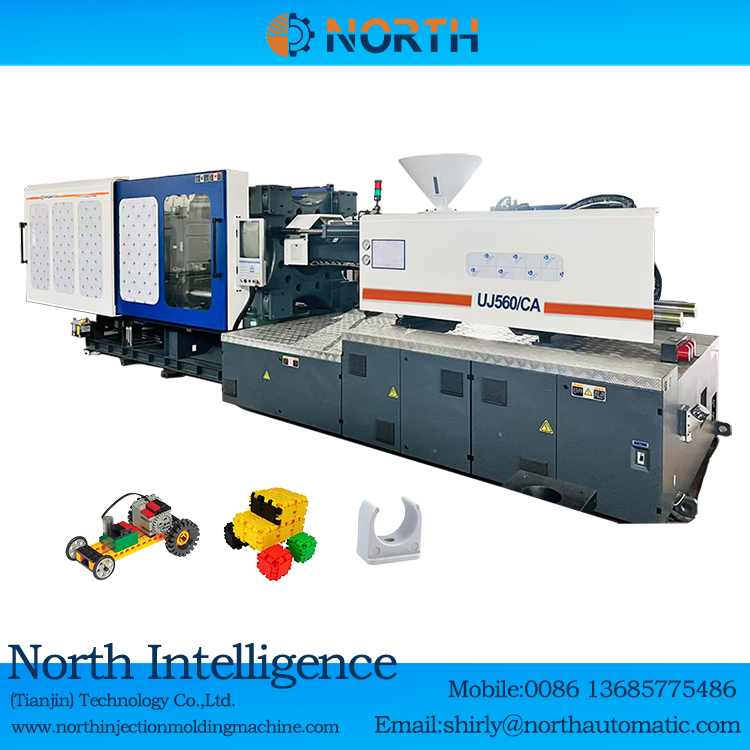

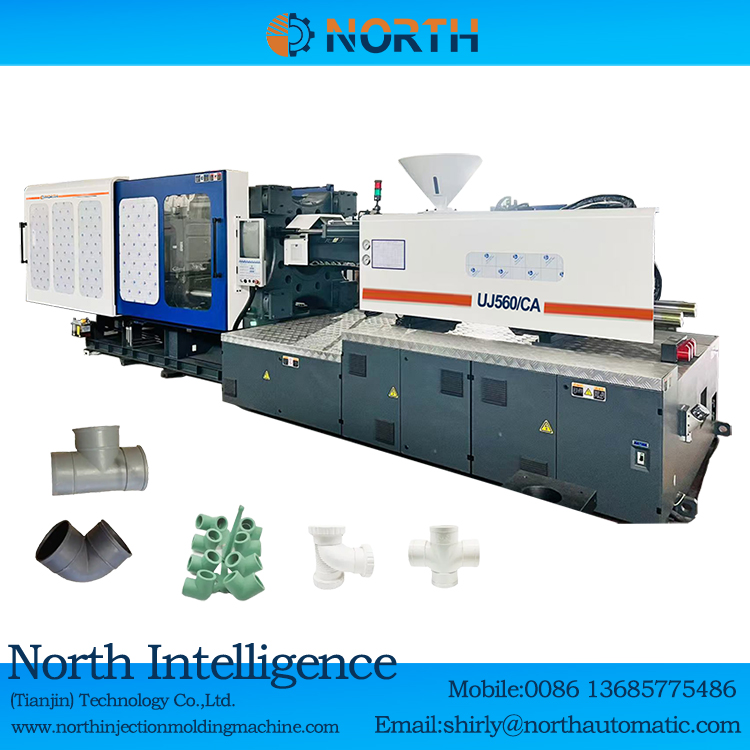

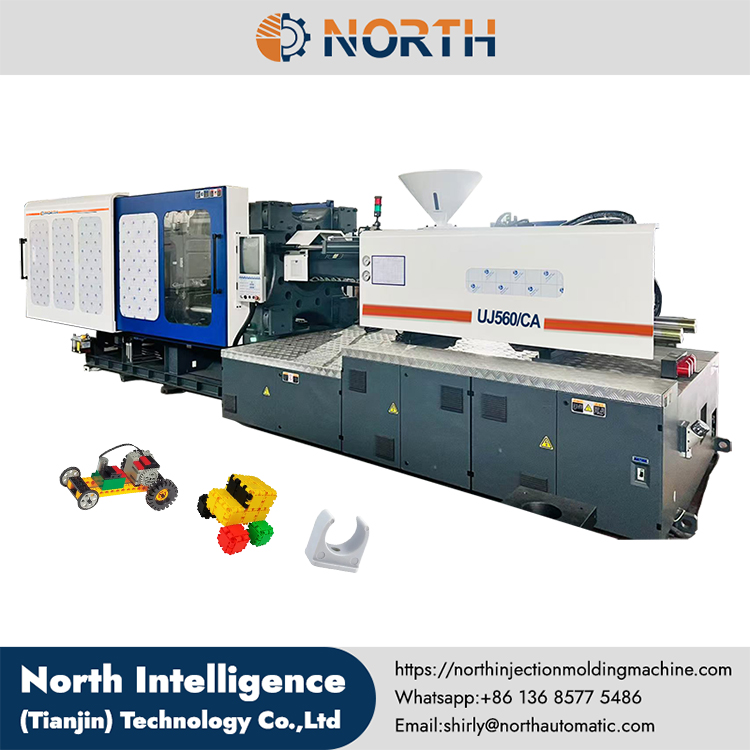

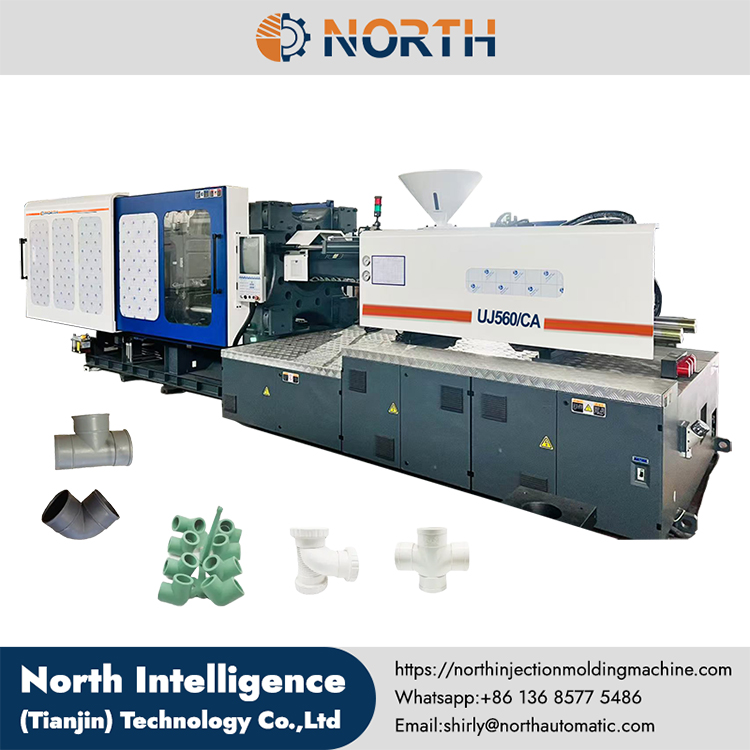

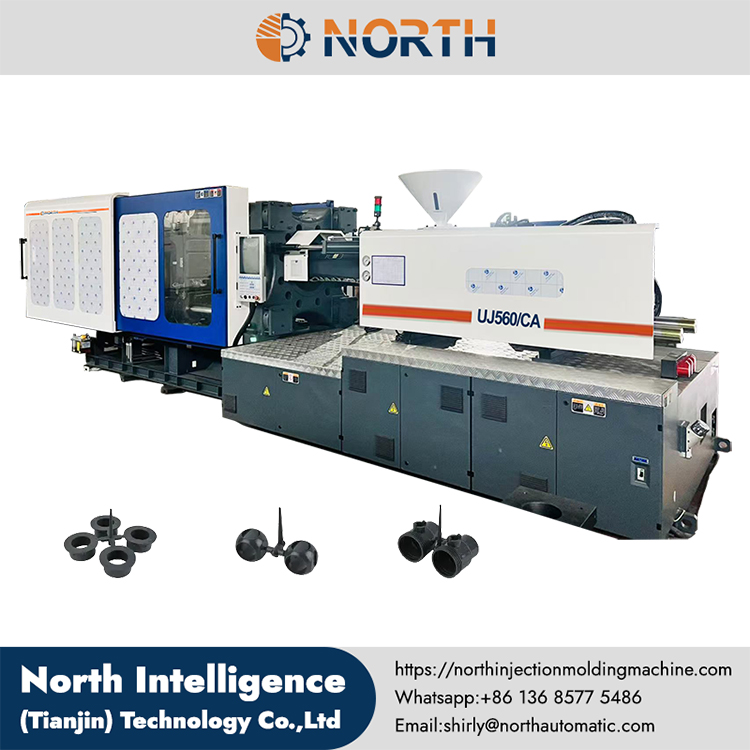

plastic pipe moulding machine
J Series system design high energy-saving injection molding machine has been listed in our National Torch Plan and we're the earliest domestic company who is engaged in this project. Servo motor can dictate different machine action according to product workmanshi requirement, it will input data into the controller and instruct each machine's movement quickly based on different load demand.The linearity of servo driving system operational process keeps good treacking with rechnological instruction.Therefore, the system pressure and flow becomes a closed loop, which achieves sicientific combination of high machine performance & high energy-saving(45%-75%). With this high-response system, the machine working effiency can reach 98% or more

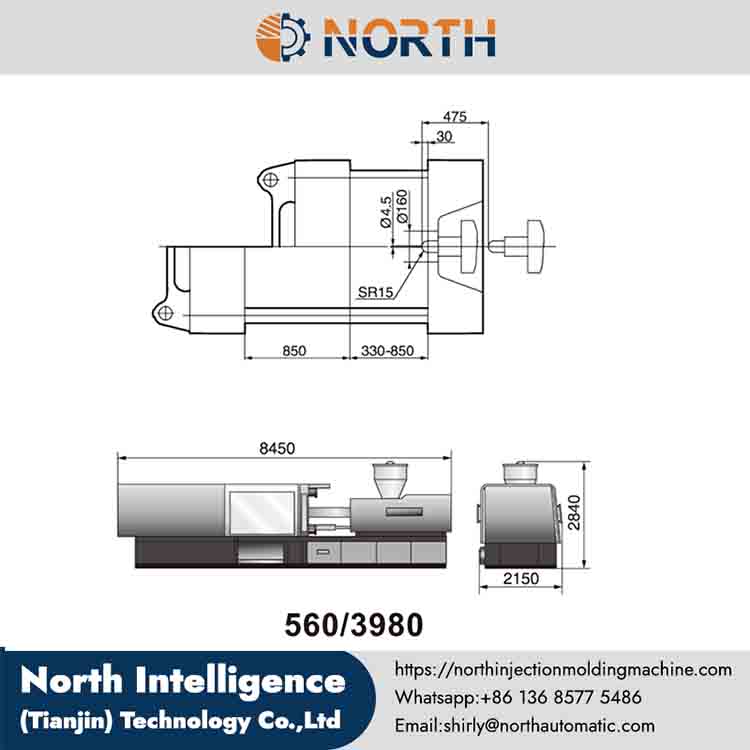

plastic pipe moulding machine specification
INTERNATIONAL CLASS NO. 560/3980
TYPE/SPECIFICATION U/560D
Screw type A B C D
Injection Unit
Screw diameter mm 80 85 90 100
Screw L/D ratio L/D 22 20.7 19.6 17.6
Shot volume (theoretical) CM³ 2212 2497 2799 3456
Injection weight (PS) g 2013 2272 2547 3145
Injection rate g/s 443 500 561 692
Injection pressure Mpa 179 159 142 115
Screw speed rpm 130
Clamping Unit
Clamping force KN 5600
Open stroke mm 850(860)
Space between tie-bars(W"H) mm 830×830
Max.mould height mm 850
Min.mould height mm 330
Ejector stroke mm 240
Ejector force KN 150
Others
Pump max.pressure Mpa 16
Pump motor power(servo) KW 55(58)
Heating power KW 31.4
Numbers of heating area Segment 5+1

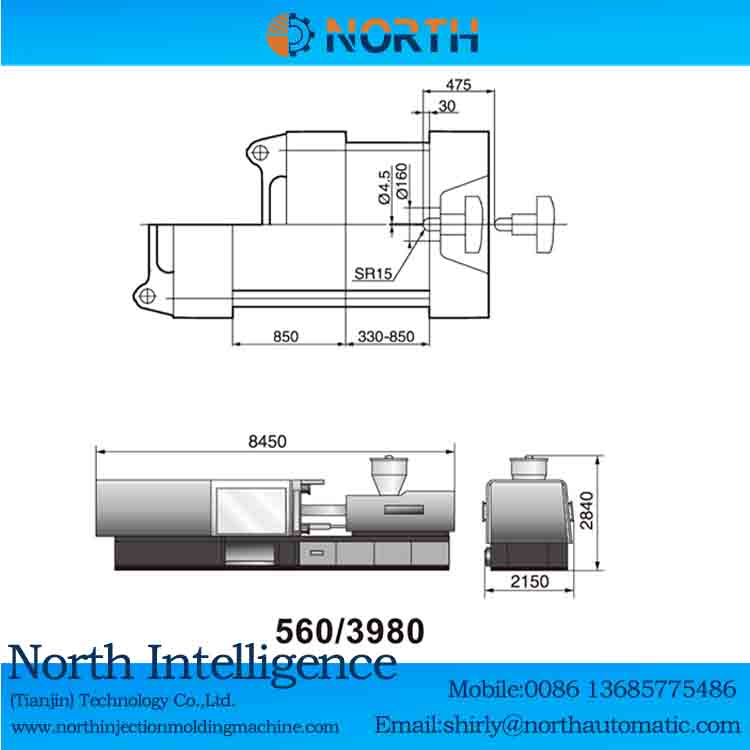

Machine dimension (L*W"H) M 8.45×2.15×2.84
Oiltank cubage L 690
Machine weight TON 21

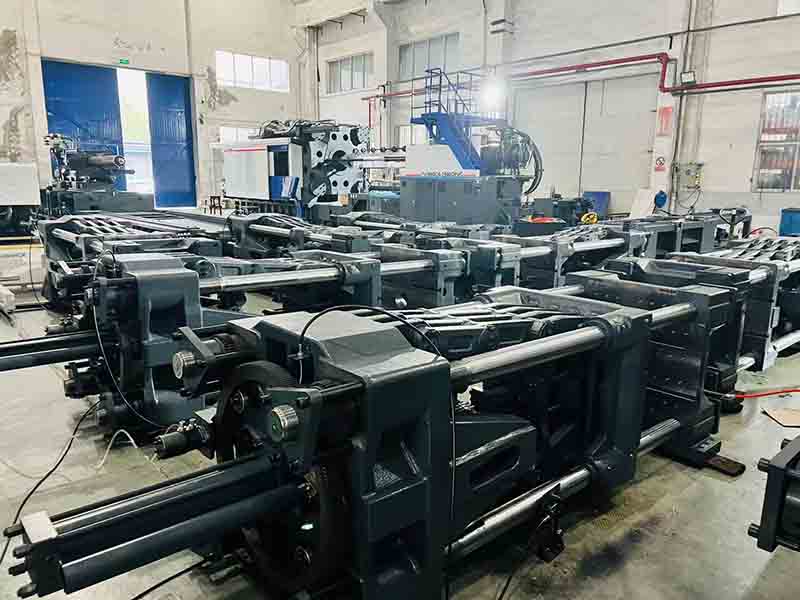

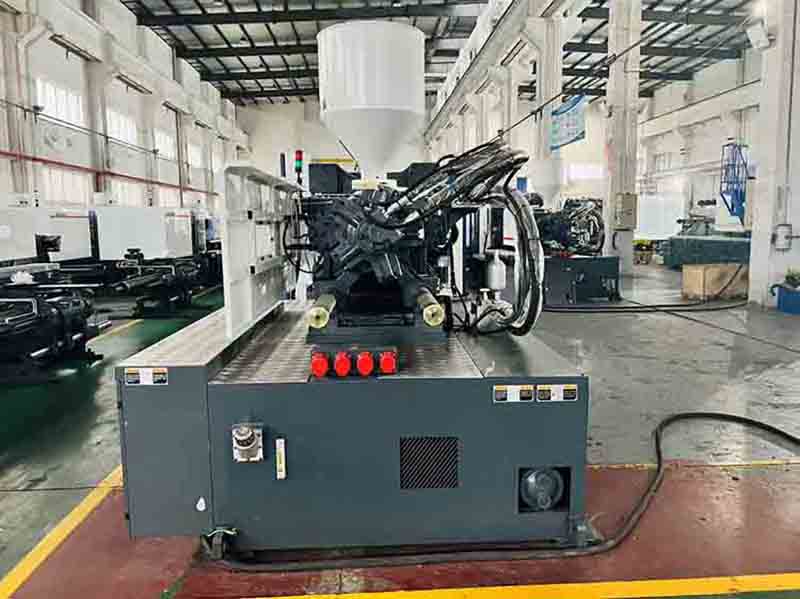

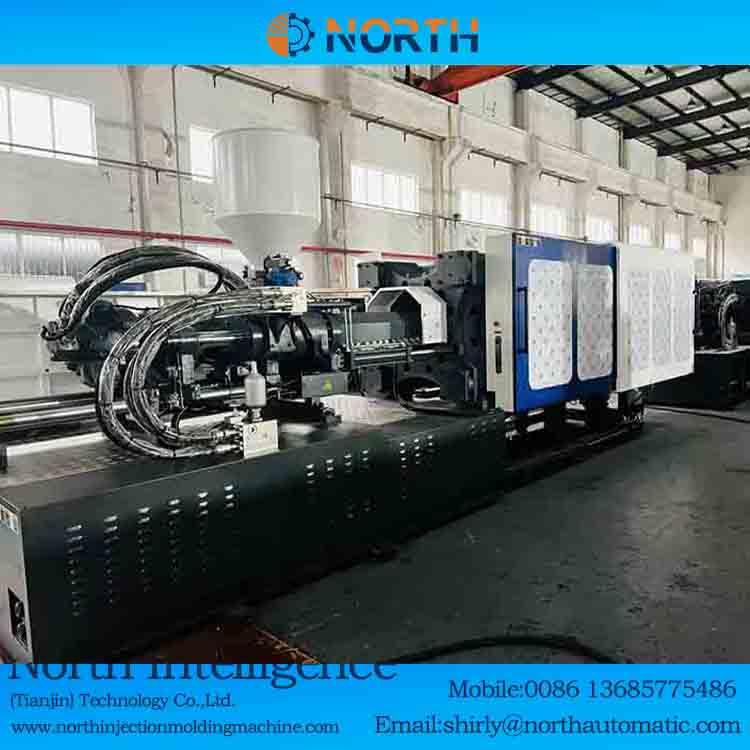

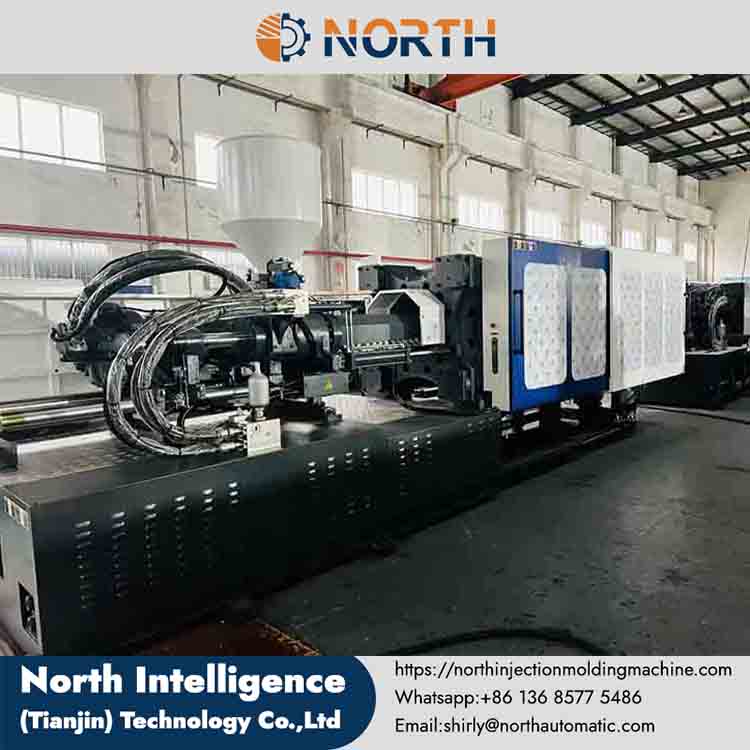

plastic pipe moulding machine in factory
The seller will dispatch an engineer to the buyer's side if required;
The buyer should pay all the expenses including visa application fees, the round-trip ticket, food and accomodation etc;
And the buyer should also pay $200/day for engineer during machine installation and testing period.
Frequently Asked Questions (FAQ)
1.Q: Are you a factory or a trading company?
A: Industry and trade integration, we supply with high-quality factory prices, welcome to visit!
2.Q: How is the quality control of your factory?
A: "Quality is our top priority. We always attach great importance to quality control from beginning to end and have a dedicated quality control department.
3.Q: What is your normal delivery time?
A: Our company's general delivery time is 25-55 days after receiving the order. We also have independent locations and engineers to handle more urgent orders, which can be shipped within 4 weeks.
4.Q: About the price?
A: We will calculate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price discounts.
5.Q: How is your machine different from other merchants' machines?
A: We have optimized the overall design of each component of the machine to make the machine run more smoothly and have a longer service life. Fine parts are all marked exclusively, which is more convenient for customers to replace parts and use.
6.Q: Where is your factory located? How can I visit us?
A: Our factory is located at Huadingxinqu No.1,Xiqing Dist 300392,Tianjin,China.Welcome domestic and foreign customers!
You are welcome to send samples, and we will customize high-quality machines for you! Best wishes to you!
North Intelligence focuses on providing various types of high-end injection molding machines, and has accumulated more than 15 years of experience in the research and development and manufacturing of injection molding machines. It provides advanced and precise injection molding equipment for related industries, and provides one-stop injection molding solutions and one-stop turnkey engineering services for factory construction.
