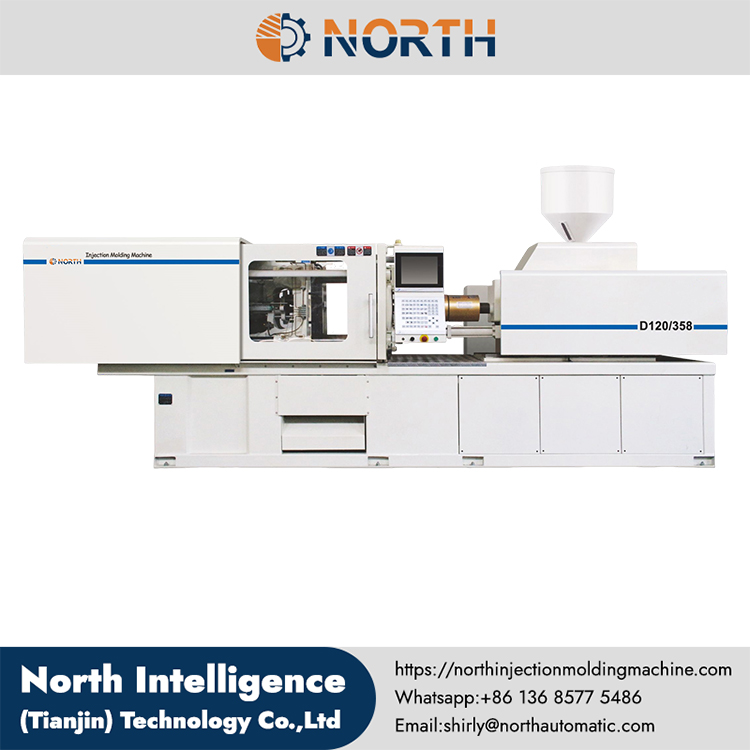

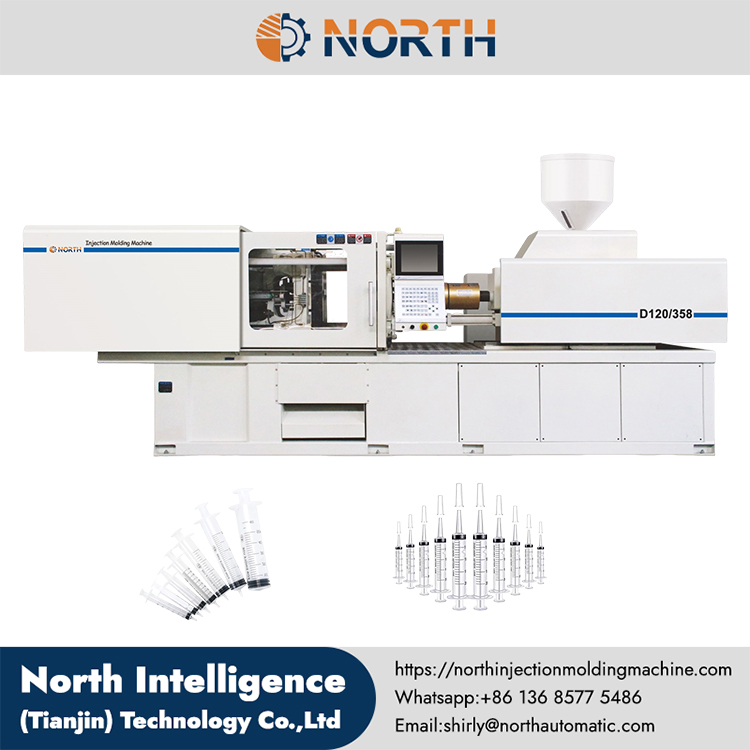

Syringe injection molding machine U120/358

• The servo motor drives screw ball so to achieve machine pre-plasticizing andinjection movement
• Pre-plasticizing, backpressure, injection and holding pressure has realized full closed-loop numerical control, making injection repeat precision reach up to 0.01mm
• The clamping structure consists of servo motor drives high precision fixed pump /hydraulic transmission
• Overall machine movement is timely controlled and accurately run according to products processing technology
• Servo system as well as well-matched high response controller has fully applied to machine cycle
• Hybrid machine has been a popular alternative for full electric machine, which is applicable to ultra-thin-wall and high precision products processing

Syringe injection molding machine U120/358 specification

INTERNATIONAL  CLASS  NO.                                             120/358

SPECIFICATION                                                                     D120A

Screw type                                                                      A                         B                         C

Injection Unit

Screw diameter                                mm                        32                       35                       38

Screw L/D ratio                                L/D                         23                       21                       19.5

Shot volume (theoretical)               CM³                       136                      163                      192

Injection weight (PS)                       g                            124                      148                      175

Injection rate                                   g/S                         222                      265                      312

Injection pressure                            Mpa                       262                      219                      186

Injection speed                                mm/s                                                300

Screw speed                                     rpm                                                  400

Clamping Unit

Clamping force                                KN                                                       1200

Open stroke                                      mm                                                     350

Space between tie-bars(W"H)        mm                                                    410×370

Max.mould height                           mm                                                      380

Min.mould height                            mm                                                      150

Ejector stroke                                   mm                                                      120

Ejector force                                     KN                                                        38

Others

Pump max.pressure                         Mpa                                                       16

Pump motor power(servo)              KW                                                        57.5

Heating power                                  KW                                                       9.9

Numbers of heating area                segment                                                3+1

Machine dimension (L*W"H)           M                                                    4.9×1.32×1.95

Oiltank cubage                                L                                                             190

Machine weight                               TON                                                       4.2

Syringe injection molding machine U120/358 in factory

Syringe injection molding machine U120/358 Installation:

The seller will dispatch an engineer to the buyer's side if required;

The buyer should pay all the expenses including visa application fees, the round-trip ticket, food and accomodation etc;

And the buyer should also pay $200/day for engineer during machine installation and testing period.

Frequently Asked Questions (FAQ)

1.Q: Are you a factory or a trading company?

   A: Industry and trade integration, we supply with high-quality factory prices, welcome to visit!

2.Q: How is the quality control of your factory?

   A: "Quality is our top priority. We always attach great importance to quality control from beginning to end and have a dedicated quality control department.

3.Q: What is your normal delivery time?

   A: Our company's general delivery time is 25-55 days after receiving the order. We also have independent locations and engineers to handle more urgent orders, which can be shipped within 4 weeks.

4.Q: About the price?

   A: We will calculate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price discounts.

5.Q: How is your machine different from other merchants' machines?

   A: We have optimized the overall design of each component of the machine to make the machine run more smoothly and have a longer service life. Fine parts are all marked exclusively, which is more convenient for customers to replace parts and use.

6.Q: Where is your factory located? How can I visit us?

   A: Our factory is located at Huadingxinqu No.1,Xiqing Dist 300392,Tianjin,China.Welcome domestic and foreign customers!

You are welcome to send samples, and we will customize high-quality machines for you! Best wishes to you!
