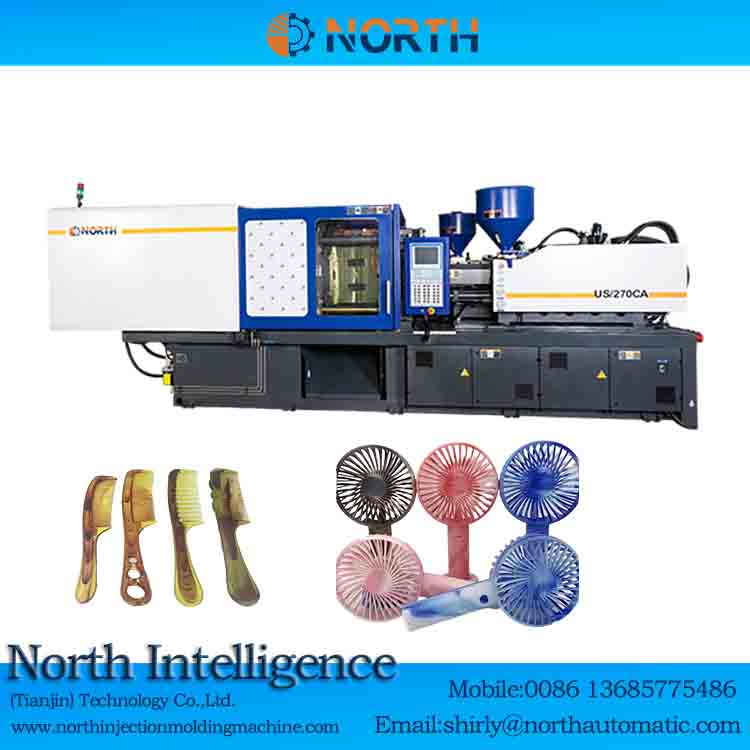

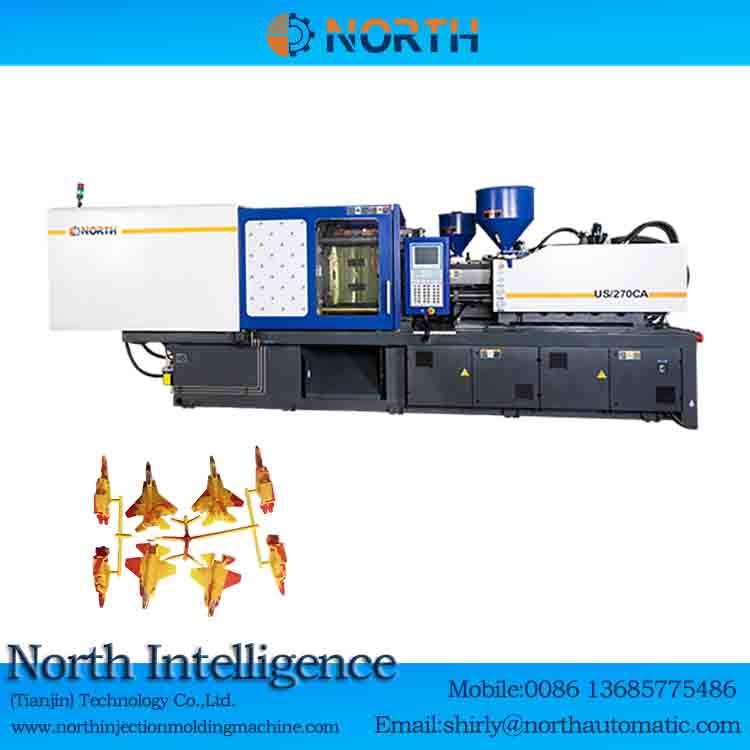

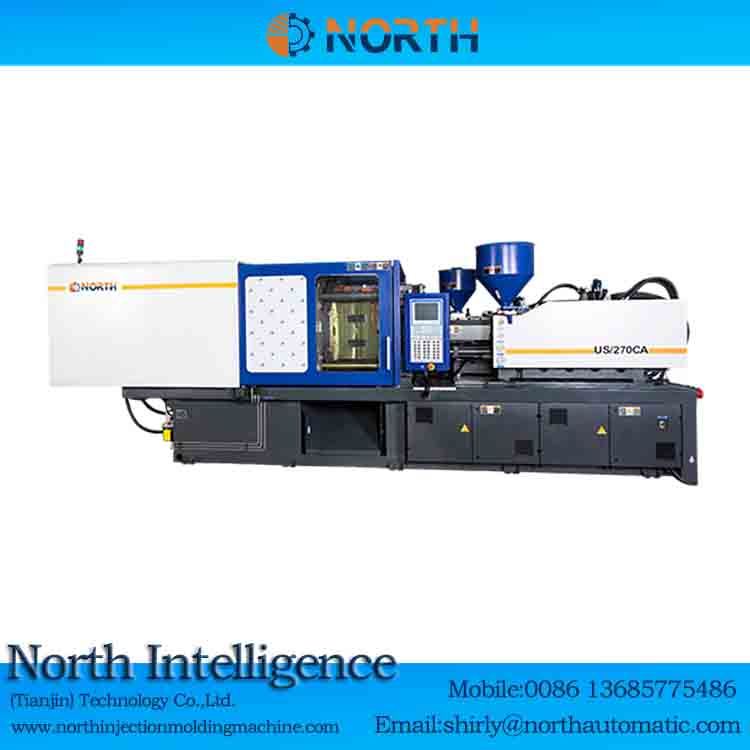

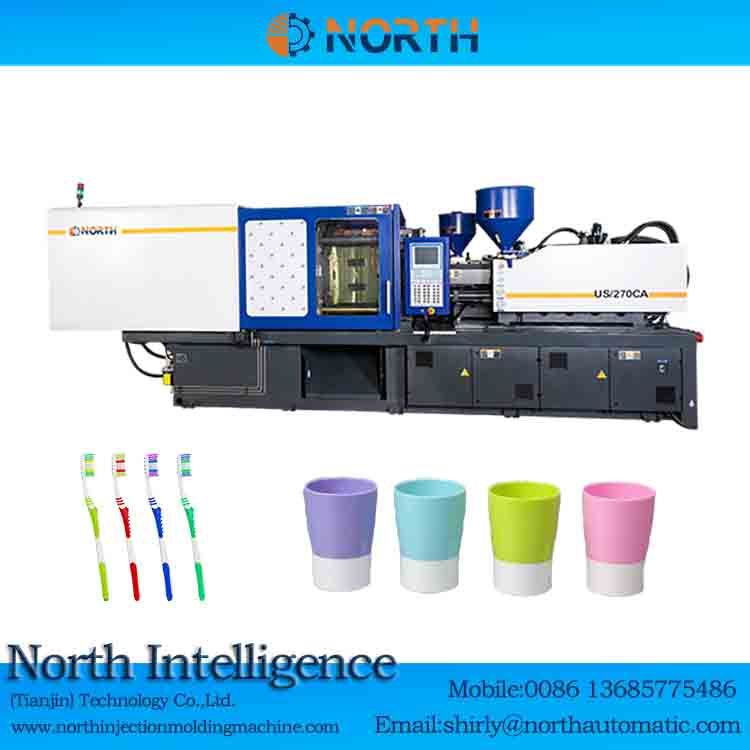

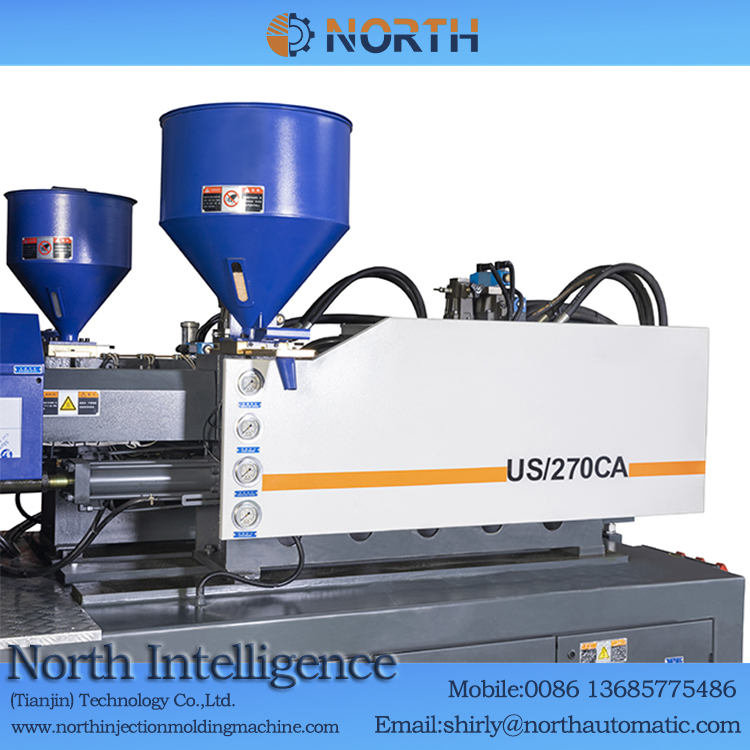

Double color injection molding machine US270CA

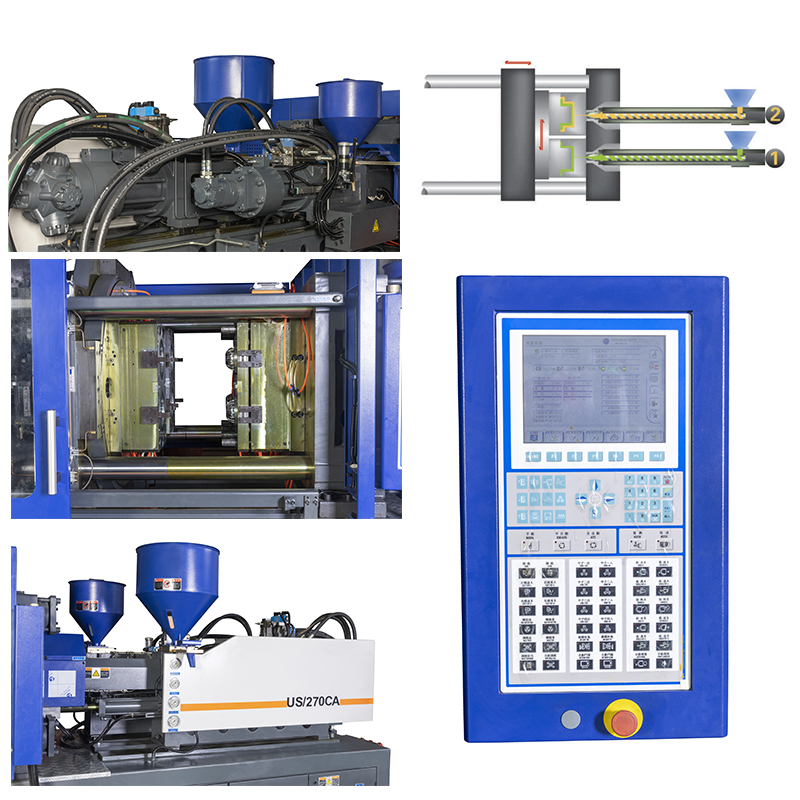

• When the mold opens, the moving platen is equipped with 180°rotary table unit, by using hydraulicmotor or servo motor to drive the rotation, it can make rotary table positioning accurately and quickly
• Machine functions/the synchronous iniection of bi-component heterogeneous materials injection unitis suitable for the processing and manufacturing of dual color &sandwich material products

Double color injection molding machine US270CA specification

INTERNATIONAL  CLASS  NO.                                                     S270A

SPECIFICATION                                             注Injection 1(358)             注Injection 2(478)

Screw type                                                                A                     B                     A                    B

Injection Unit

Screw diameter                                mm                   32                   35                   38                  42

Screw L/D ratio                                L/D                   24.1                 22                   24.3               22

Shot volume (theoretical)               CM³                  136                 163                  227               277

Injection weight (PS)                       g                       124                  148                 207                25

Injection rate                                   g/S                     74                    89                   94                  115

Injection pressure                            Mpa                  260                  219                 209               171

Screw speed                                     rpm                             0-210                               0-1 85

Clamping Unit

Clamping force                                KN                                                       2700

Open stroke                                      mm                                                      560

Diameter  ofrotational  mold  adapter                                                      Φ 1060

Space between tie-bars(W"H)        mm                                                    950×580

Max.mould height                           mm                                                      560

Min.mould height                            mm                                                      200

Ejector stroke                                   mm                                                      110

Ejector force                                     KN                                                        38*2

Dstance  betwen  mots  posin  centers                                                     490

Others

Pump max.pressure                         Mpa                                                       16

Pump motor power(servo)              KW                                 13                                          15

Heating power                                  KW                                 7.5                                        9.3

Machine dimension (L*W"H)           M                                                    6.2×2.2×2.4

Machine weight                                TON                                                     122

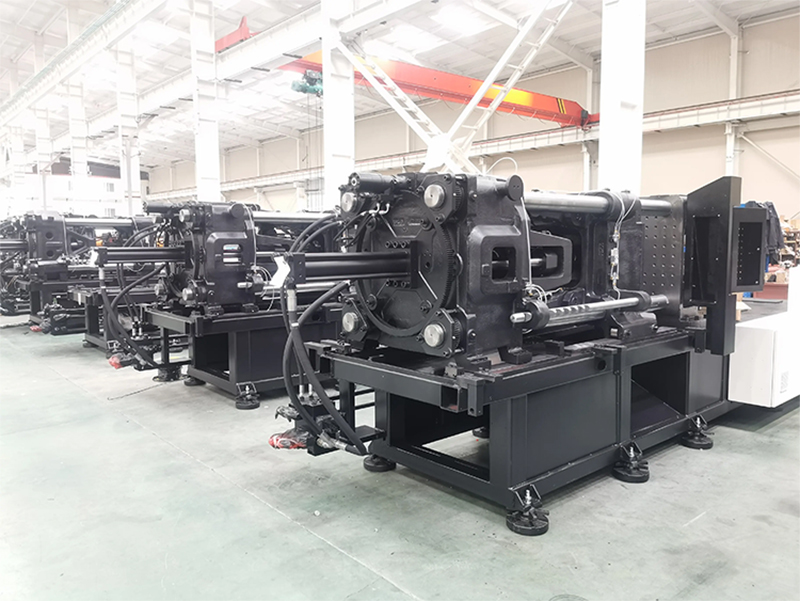

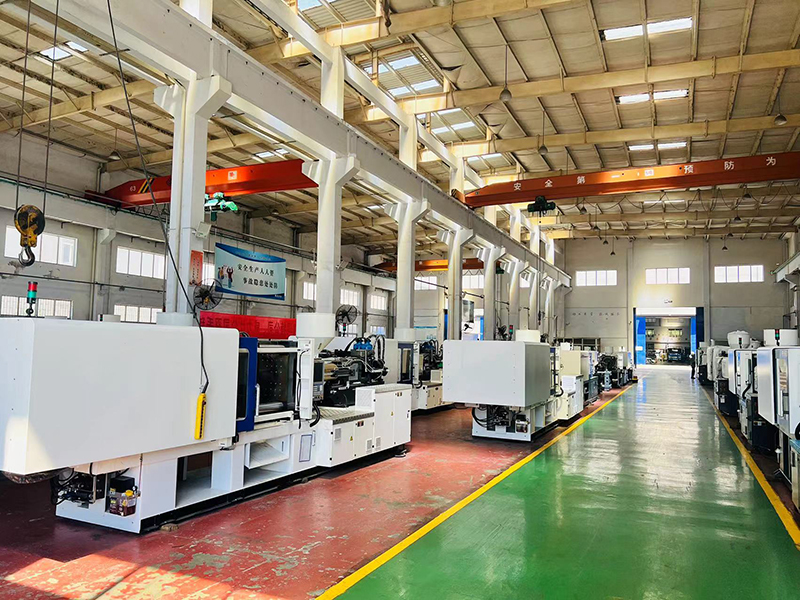

Double color injection molding machine US270CA in factory

Double color injection molding machine US270CA Installation:

The seller will dispatch an engineer to the buyer's side if required;

The buyer should pay all the expenses including visa application fees, the round-trip ticket, food and accomodation etc;

And the buyer should also pay $200/day for engineer during machine installation and testing period.

Frequently Asked Questions (FAQ)

1.Q: Are you a factory or a trading company?

   A: Industry and trade integration, we supply with high-quality factory prices, welcome to visit!

2.Q: How is the quality control of your factory?

   A: "Quality is our top priority. We always attach great importance to quality control from beginning to end and have a dedicated quality control department.

3.Q: What is your normal delivery time?

   A: Our company's general delivery time is 25-55 days after receiving the order. We also have independent locations and engineers to handle more urgent orders, which can be shipped within 4 weeks.

4.Q: About the price?

   A: We will calculate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price discounts.

5.Q: How is your machine different from other merchants' machines?

   A: We have optimized the overall design of each component of the machine to make the machine run more smoothly and have a longer service life. Fine parts are all marked exclusively, which is more convenient for customers to replace parts and use.

6.Q: Where is your factory located? How can I visit us?

   A: Our factory is located at Huadingxinqu No.1,Xiqing Dist 300392,Tianjin,China.Welcome domestic and foreign customers!

You are welcome to send samples, and we will customize high-quality machines for you! Best wishes to you!
