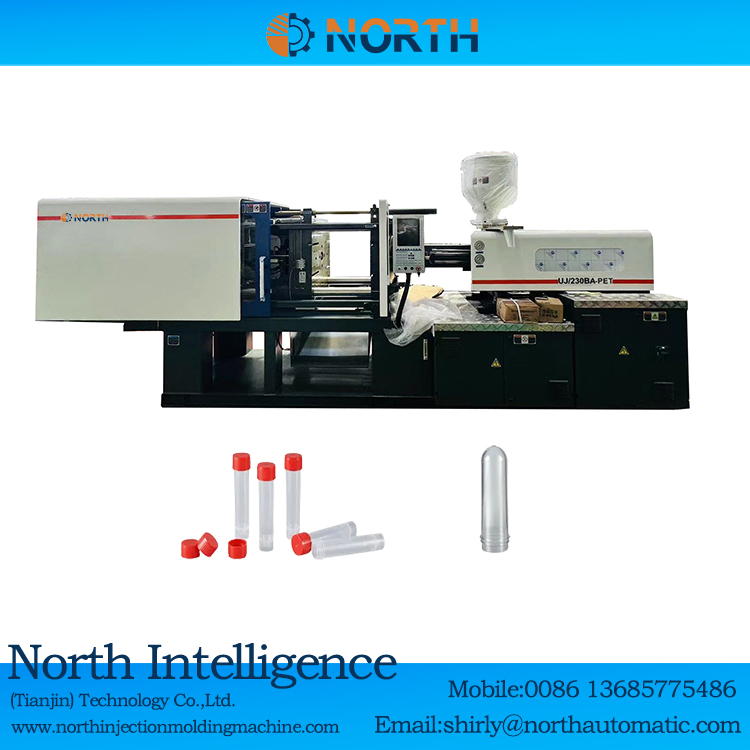

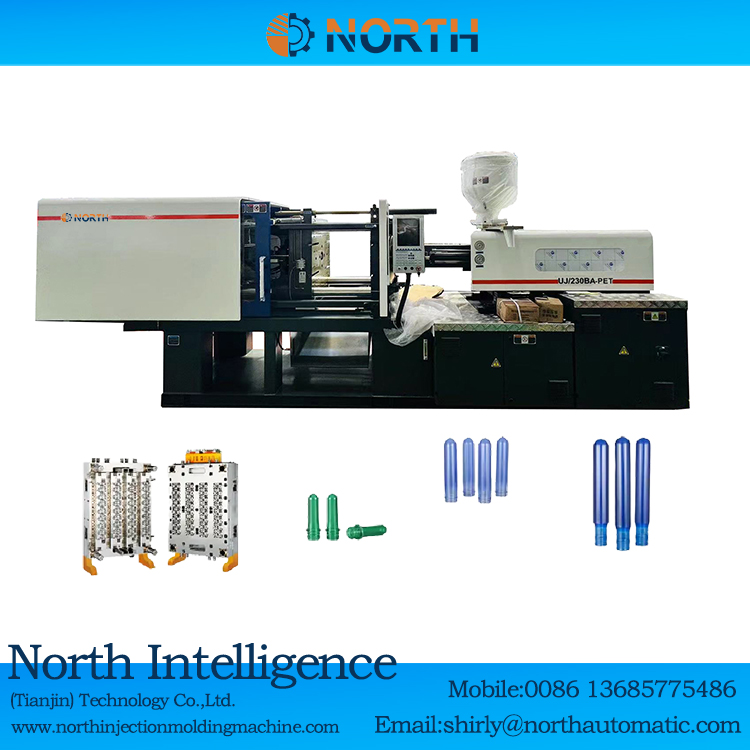

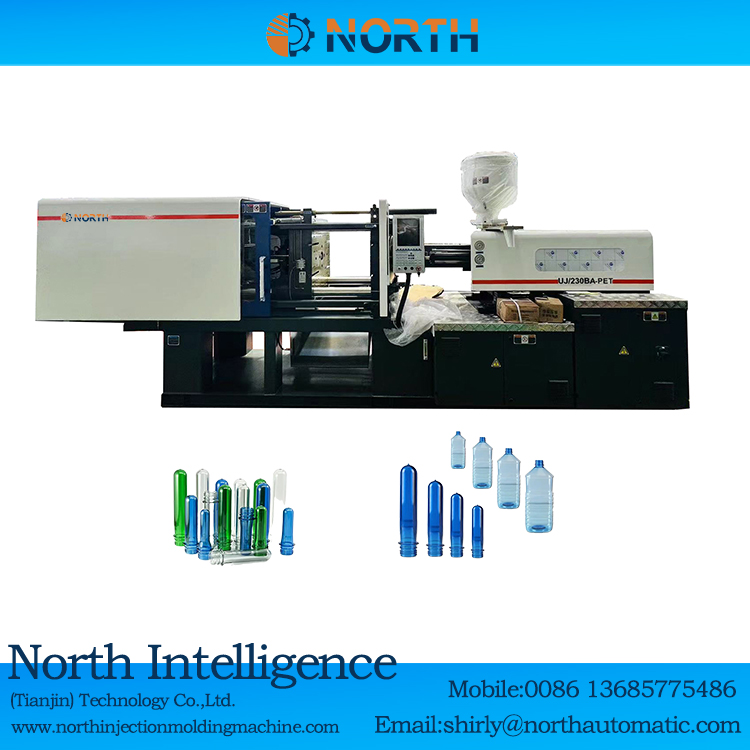

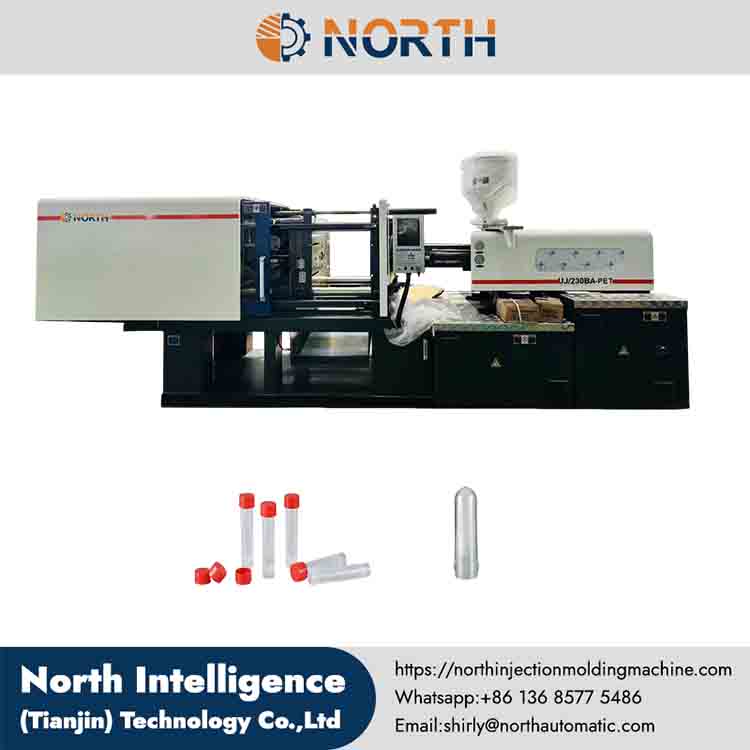

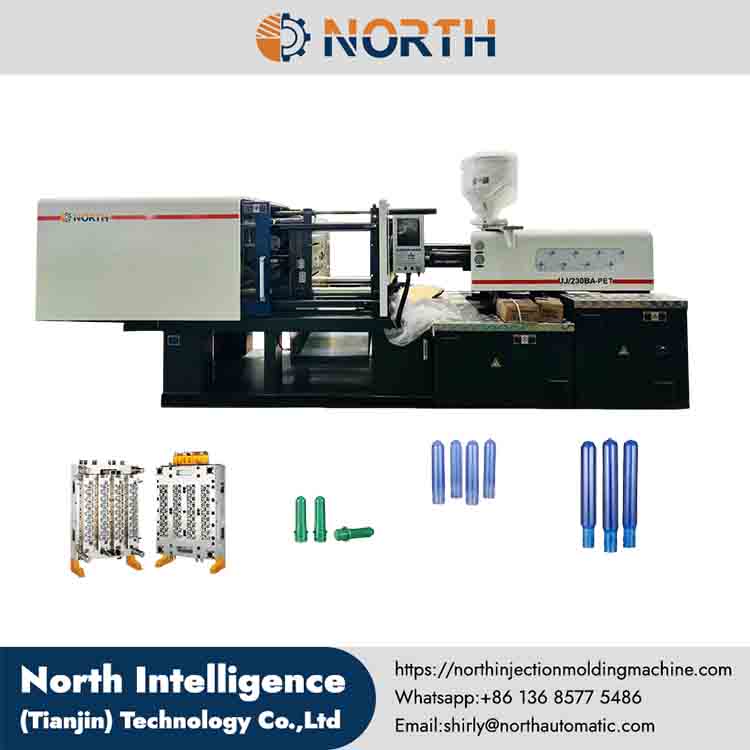

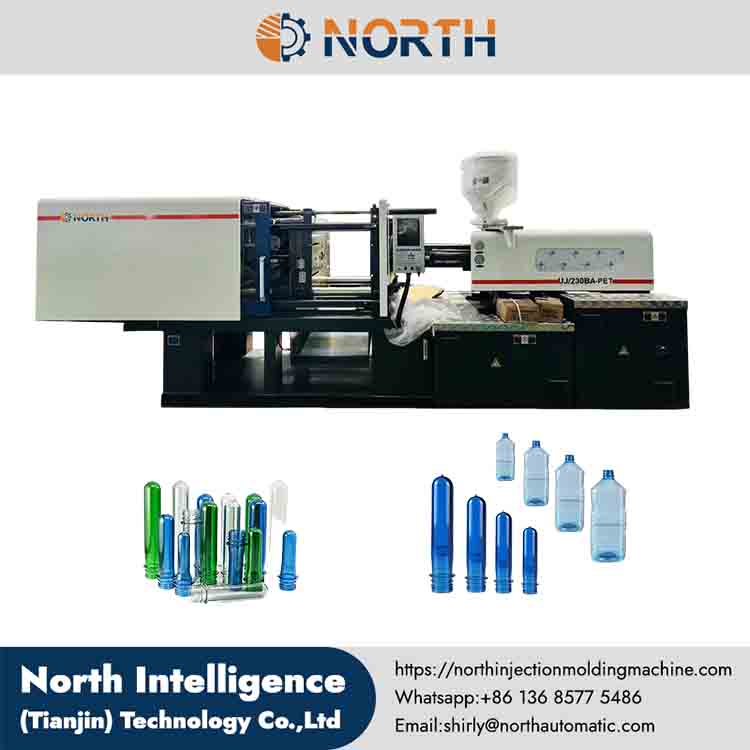

pet injection moulding machine Introduction
l. lmported brand controller
Imported options: mainly KEBA and B&R, Display the concept of high response & multi function people-oriented control.
ll. CE standard system & series
Hybrid system & machine series, which is honored with CE Certificate
To improve the safety rate during machine operation.
lll. Overlap movement high speed system
Ejection or plasticizing when mold opening & clamping
To increase machine cycle and achieve high efficiency.
IV. High efficiency non-standard power/capacity expansion system
Add driving function on standard machine power, So to increase operation cycle obviously & achieve super quality and high efficiency.
V. High speed acceleration /accumulator unit
Suitable for the production of thin-wall& fast molding products, So to meet the processing requirements of precision & high difficulty products.
Vl. High precision injection unit pressure sensor device
Improve system pressure real time cycle during injection unit operation,So to realize the closed-loop effect of injection/holding pressure and pre-plasticizing & back pressure.
Vll. High precision injection servo valve/closed-loop device
Applicable to processing requirements of extremely precision high end products, So to increase injection repeat accuracy efficiently.
Vlll. Single cylinder fast injection device
Appropriate for 360T (or below) machine's clamping unit to match single cylinder high injection molding, So to ensure the production of ultrathin-wall products, and realize super quality and high efficiency.
IX.Optimum function combination of clamping & injection
Suitable for the pertinent special products by nonstandard and optimum customized combination of clamping unit & injection unit machine,So to reach most suitable application of optimum mass production.
pet injection moulding machine specification
INTERNATIONAL CLASS NO. 230/828
TYPE/SPECIFICATION U/230E
Screw type A B C
Injection Unit
Screw diameter mm 45 50 55
Screw L/D ratio L/D 25 25 25
Shot volume (theoretical) CM³ 397 490 593
Injection weight (PET) g 495 611 739
Injection rate g/S 186 230 278
Injection pressure Mpa 179 168 139
Screw speed rpm 125

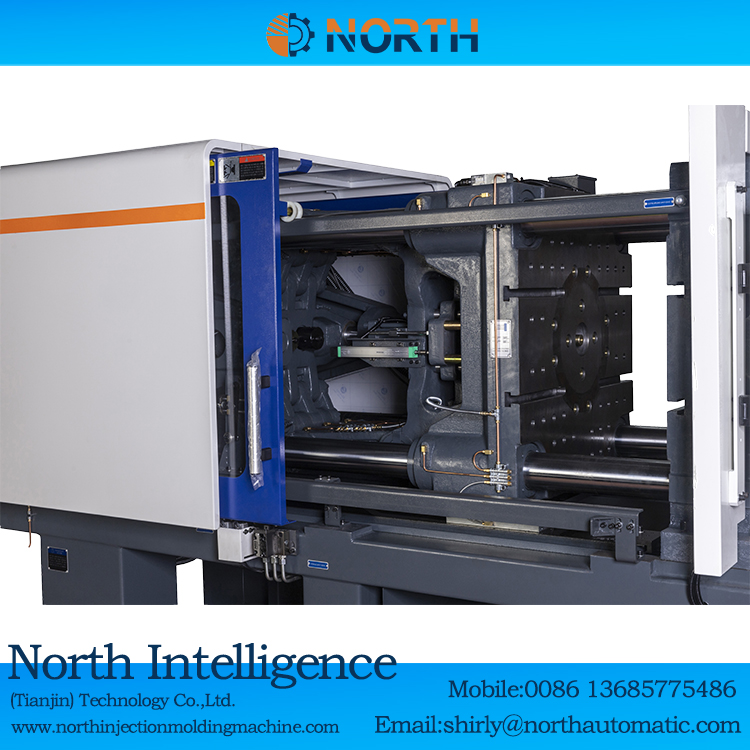

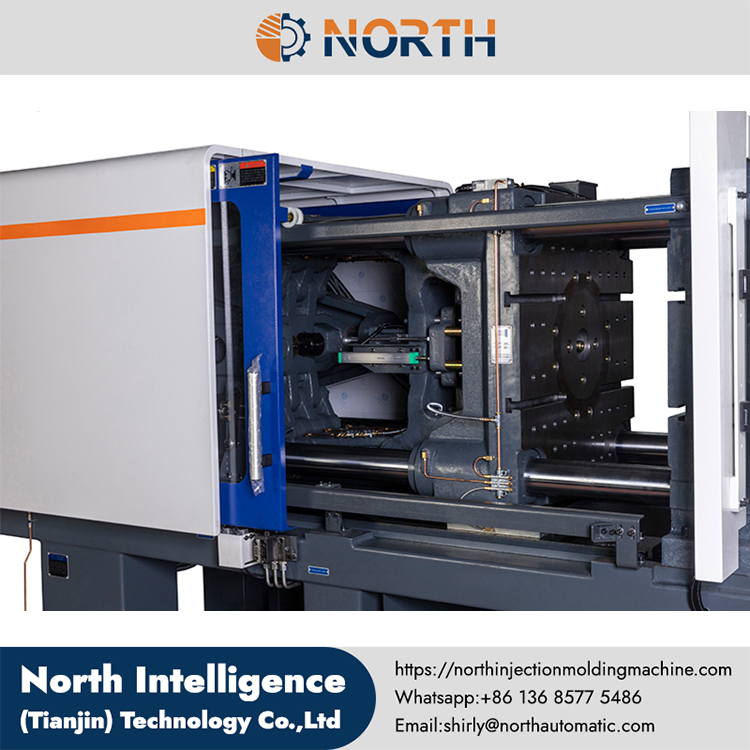

Clamping Unit
Clamping force KN 2300
Open stroke mm 475
Space between tie-bars(W"H) mm 520×520
Max.mould height mm 560
Min.mould height mm 200
Ejector stroke mm 150
Ejector force KN 70
Others
Pump max.pressure Mpa 16
Pump motor power(servo) KW 18.5(23)
Heating power KW 14.8
Numbers of heating area Segment 3+1
Machine dimension (L*W"H) M 5.75×1.58×2.28
Oiltank cubage L 230
Machine weight TON 7

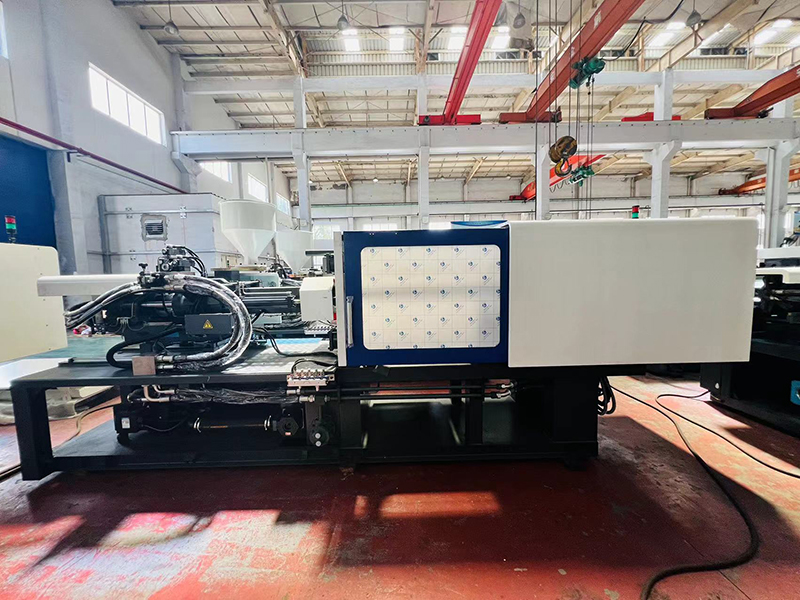

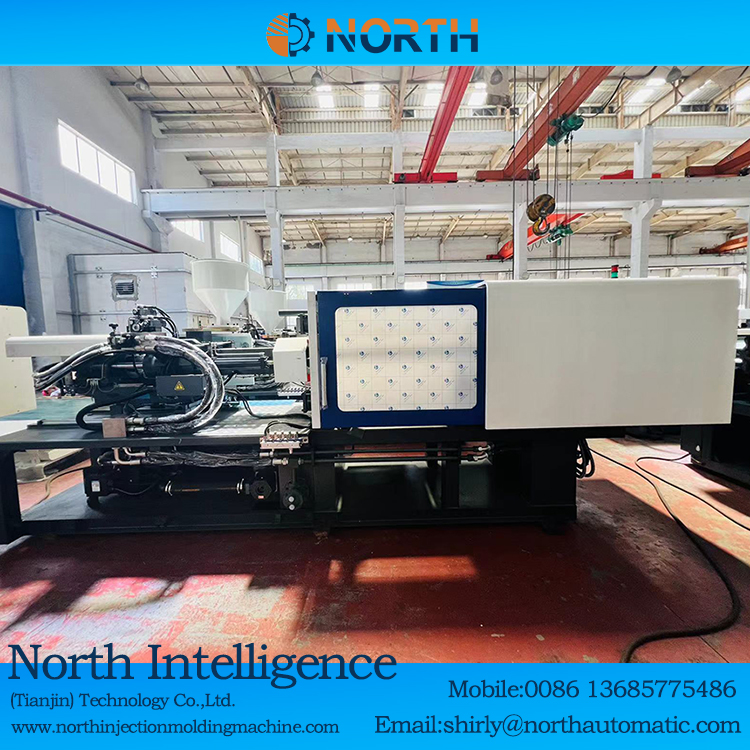

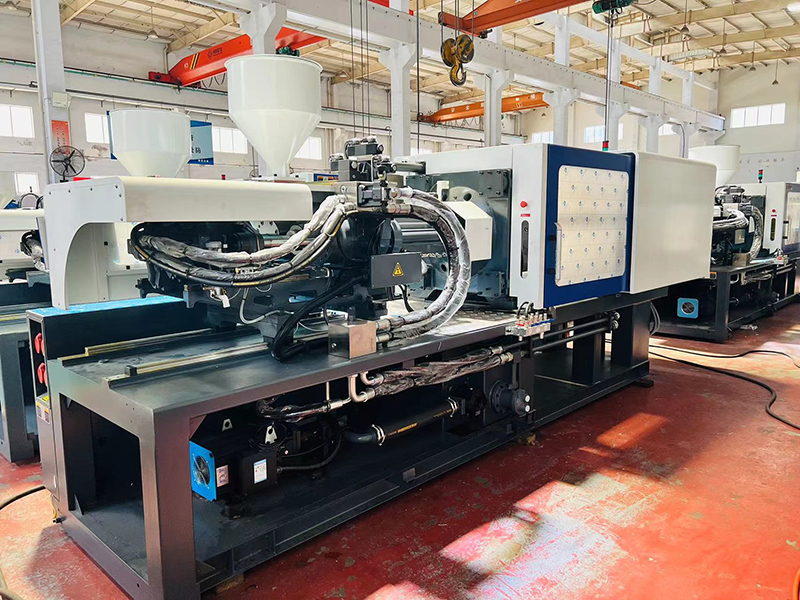

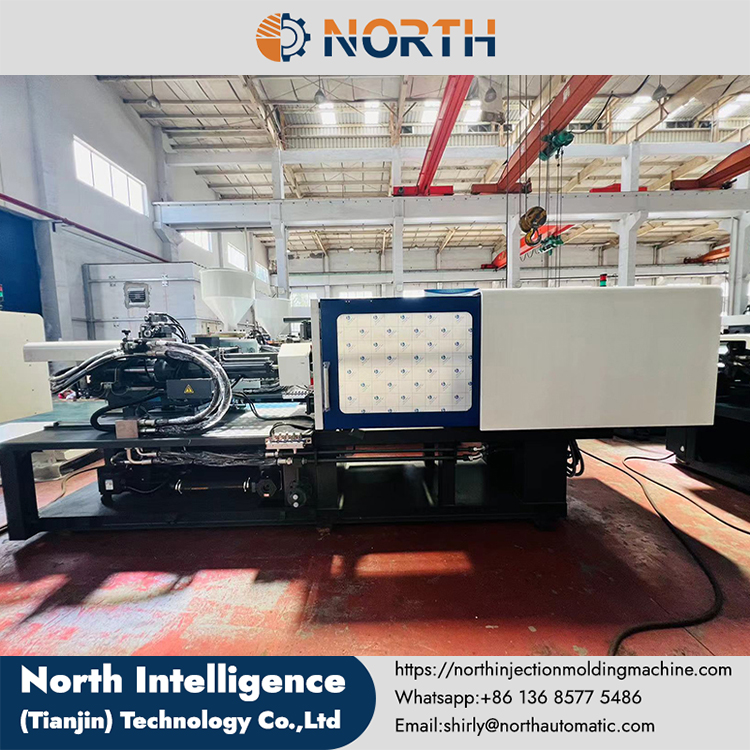

pet injection moulding machine in factory
The seller will dispatch an engineer to the buyer's side if required;
The buyer should pay all the expenses including visa application fees, the round-trip ticket, food and accomodation etc;
And the buyer should also pay $200/day for engineer during machine installation and testing period.
Frequently Asked Questions (FAQ)
1.Q: Are you a factory or a trading company?
A: Industry and trade integration, we supply with high-quality factory prices, welcome to visit!
2.Q: How is the quality control of your factory?
A: "Quality is our top priority. We always attach great importance to quality control from beginning to end and have a dedicated quality control department.
3.Q: What is your normal delivery time?
A: Our company's general delivery time is 25-55 days after receiving the order. We also have independent locations and engineers to handle more urgent orders, which can be shipped within 4 weeks.
4.Q: About the price?
A: We will calculate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price discounts.
5.Q: How is your machine different from other merchants' machines?
A: We have optimized the overall design of each component of the machine to make the machine run more smoothly and have a longer service life. Fine parts are all marked exclusively, which is more convenient for customers to replace parts and use.
6.Q: Where is your factory located? How can I visit us?
A: Our factory is located at Huadingxinqu No.1,Xiqing Dist 300392,Tianjin,China.Welcome domestic and foreign customers!
You are welcome to send samples, and we will customize high-quality machines for you! Best wishes to you!
North Intelligence focuses on providing various types of high-end injection molding machines, and has accumulated more than 15 years of experience in the research and development and manufacturing of injection molding machines. It provides advanced and precise injection molding equipment for related industries, and provides one-stop injection molding solutions and one-stop turnkey engineering services for factory construction.
